COLOR BLASTER TM (CB-250)
| EASY TO USE FUNCTIONS | Color Blaster-250O has several special functions designed to enhance user convenience. You can simply flip a function dip switch to choose from DMX or audio modes, or to activate a self-test function, get lens adjustment help, or to operate on 50 or 60Hz electric power supply. All this is made easy with the following function dip switches.
|
| DIP | OFF | ON | | #1 | Exterior Control | 4 Unit Audio Mode | | #2 | Exterior Control | 8 Unit Audio Mode | | #3 | Exterior Control | Self-Test Function | | #4 | Exterior Control | Focus Assistant | | #5 | Exterior Control | Not Used | | #6 | 50 Hz Power Supply | 60 Hz Power Supply | | #7 | Exterior Control | DMX Signal Termination | |
| AUDIO CONTROL | For audio control with four units, switch on Function Dip Switch #1. For audio control with eight units, switch on Function Dip Switch #2. Up to .. units can be operated on either audio mode.
|

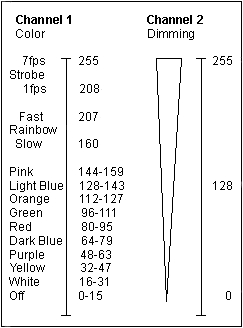

| DMX 512 CONTROL | For standard USITT DMX512 control, refer to the following diagram for effect channel positions.
|
