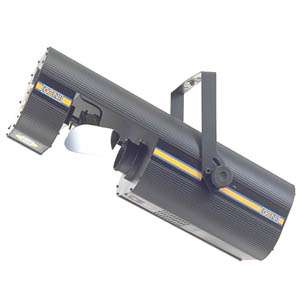

NIMBUS-2 TM (NS-2)
NIMBUS-2
The Nimbus-2 scanner is compact power. Its efficient ellipsoidal reflector concentrates lumen output from the economical Halogen 250W lamp. The result is bright light, clear colors, sharp focus - in a compact scanner. Separate color and gobo wheels provide 81 color/gobo combinations. And modular design means that gobo wheels can be replaced in an instant. Get the convenience of slide-out lamp replacement, standard 3-pin XLR signal connections, and instant upgrades, all in a rugged aluminum case. With its color/gobo variation, light output, quality, and convenience, Nimbus-2 is the envy of the small scanner world. Small but mighty, Nimbus-2 is the compact with impact.

Features

  • 9 gobos
  • 8 dichroic colors + white
  • Separate effect wheels for overlay
  • Strobe effect 1-4 fps
  • High-output ellipsoidal reflector
  • USITT DMX512 protocol
  • 170deg pan 90deg tilt
  • Smooth micro-stepping
  • Modular design convenience
  • Axial fan cooling
  • Standard 3-pin XLR connectors
  • AR & IR coated optics
  • 4 high-torque precision stepper motors
  • Built-in self test function
  • Easy to use spot focus function
  • Built-in DMX signal termination
  • Invert pan/tilt function for convenience

TECHNICAL SPECIFICATIONS
Voltage:120V~60Hz230V~50Hz
Dimensions:570x220x165 mm 570x220x165 mm
Weight:12.0 kg12.0 kg
Power Consumption:350VA350VA
Lamp:HLX 64657 FGX 24V/250W (300 hr.)HLX 64657 FGX 24V/250W (300 hr.)
Signal:USITT DMX512USITT DMX512
Signal Connection:3-pin XLR3-pin XLR
Addressing:Standard DMX512 9-pin binaryStandard DMX512 9-pin binary
Channels:44
Termination:Built-In (Manual)Built-In (Manual)
Recommended Controller:Mastermind 64, MiniMaster 16Mastermind 64, MiniMaster 16
   CE Approved
