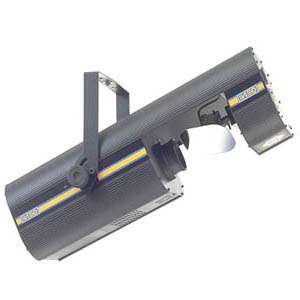

NIMBUS-200 TM (NS-200)
NIMBUS-200
Nimbus-200 scanner builds on the success of Nimbus-2 by replacing the halogen lamp with the HSD-200 lamp. The result is startingly bright, white light. The HSD-200 lamp, pared with a computer-optimized ellipsoidal reflector, emits 250% more lumen power - for a full 2000 hours. This makes the Nimbus-200 reach an incredibly bright 27500Y. Small but mighty, Nimbus-200 includes the full range of effects and modular convenience that make our Nimbus-2& so popular: easy, sharp focus, 81 color/gobo combinations, slide-out lamp replacement, rugged extruded aluminum case, convenient 3-pin XLR signal connection, modular gobo and color wheel design. The Nimbus-200 is compact power - enhanced.

Features

  • 250% more lumen output
  • Bright, white light: 5700K 27500Y
  • 9 gobos; 8 dichroic colors + white
  • Separate effect wheels for overlay
  • Strobe effect 1-4fps
  • High-output ellipsoidal reflector
  • USITT DMX512 protocol
  • 170deg pan 90deg tilt
  • Smooth micro-stepping
  • Modular construction for easy upgrades
  • 4 high-torque precision stepper motors
  • Axial fan cooling
  • Convenient 3-pin XLR connectors
  • AR & IR coated optics
  • Built-in self test function
  • Easy to use spot focus function
  • Built-in DMX signal termination
  • Invert pan/tilt function for convenience

TECHNICAL SPECIFICATIONS
Dimensions:660x330x290 mm
Weight:14.0 kg
Voltage:230V~50Hz
Power Consumption:300VA
Lamp:HSD 200 (2000 hour)
Signal:USITT DMX512
Signal Connection:3-pin XLR
Addressing:Standard DMX512 9-pin binary
Channels:4
Termination:Built-In (Manual)
Recommended Controller:Mastermind 64, MiniMaster 16
  CE Approved
