SHARMA TM (SM-200)
EASY TO USE FUNCTIONSBesides colors, wash, strobe and dimming, SHARMA-200O has special functions designed to enhance user operation convenience. You can simply flip a function dip switch to choose from single or mixed color projection, activate the self-test function, or get lens adjustment help. Another function is the color change shutter. It covers the transition between two colors and can be activated or left off. These functions are determined simply with the flip of a dip switch.
| |
| DIP | OFF | ON| #1 | Color Change Visible | Color Changes Covered| #2 | Color Mixes Possible | Single Colors Possible| #3 | Exterior Control | Focus Adjustment| #4 | Exterior Control | Self-Test Function| #5 | Not Used | Not Used| #6 | Not Used | Not Used| #7 | Not Used | Not Used| #8 | Exterior Control | DMX Signal Termination|
| | | | | | | | |
SERVICE DIP SWITCHService convenience dip switches have two functions:
| |
| DIP | ON| #1 | Motor power supply off while lamp is lit.| #2 | Motor power on while lamp is not lit. | | |

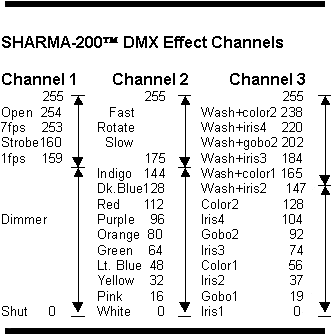

DMX 512 CONTROLSHARMA-200O is designed for use with standard USITT DMX512 controllers. Effect channel positions provide convenient DMX512 control. For effect channels, please see the chart below.
| |
