SHIVA TM (SV-200/250)
EASY TO USE FUNCTIONSBesides great effects, SHIVA has special functions to enhance user convenience. One function covers the transition between colors or gobos. Another activates an automatic program. Simply flip a function dip switch to get the option you want.
| |
| DIP | OFF | ON| #1 | Transitions Visible | Transitions Covered| #2 | Color Mixes Possible | Single Colors Possible| #3 | Exterior Control | Slow Motion Program| #4 | Exterior Control | Self-Test Function| #5 | X-Axis Left to Right | x-Axis Right to Left| #6 | Y-Axis Low to High | Y-Axis High to Low| #7 | Exterior Control | Focus Assistance| #8 | Exterior Control | DMX Signal Termination|
| | | | | | | | |
SERVICE DIP SWITCHService convenience dip switches have two functions:
| |
| DIP | ON| #1 | Motor power supply off while lamp is lit.| #2 | Motor power on while lamp is not lit. | | |

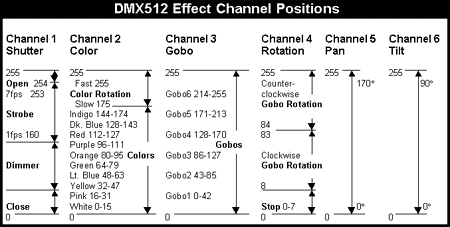

DMX 512 CONTROLSHIVA is designed for use with standard USITT DMX512 controllers. Effect channel positions provide convenient DMX control as illustrated below.
| |
