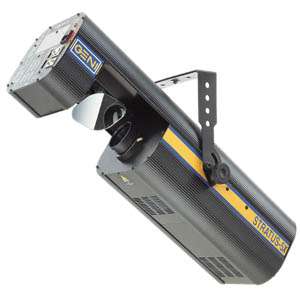

STRATUS-5X TM (SA-5X)
STRATUS-5X
Get what YOU want. Excellent light output, bold clear colors and effect variety make the Stratus-5X the mid-sized scanner of choice. Those who know the importance of light output know why Stratus-5X sells well. In scanner design, Geni has priorities right: Superb light output is ensured with an expanded 33m optical path. Gobos and dichroic colors are, likewise, larger than those in many other mid-sized scanners. The result is better lumen output, bright clear colors and gobos. Hardware includes the powerful 575W HMI lamp, 9 colors + white, 5 rotating gobos, a four-facet prism and a color filter. Combinations do the rest. The correction filter makes for 20 colors. With prism, color correction, separate color/gobo wheels, there are hundreds of effects, including overlay and scrolling. Mechanical dimming and high-speed strobe (with any color or gobo pattern) further enhance your arsenal of options. Stop the show with a barrage of colors. Or start the show with a mellow, intensifying light. With the Stratus-5X, you get what you want: Color/gobo variation -- and the light output to make the show impeccable.

Features

  • Expanded 33m optical path for more light
  • AR & IR coated optics
  • Bright, white HMI 575W lamp
  • 5 rotating replaceable gobos
  • 9 sharp dichroic colors and white
  • 4-facet prism and 3700 K color correction filter
  • Bi-directional gobo rotation; variable speed
  • High speed dual blade shutter 1-7fps
  • True mechanical linear dimming 0-100%
  • 170deg Pan 90deg Tilt; smooth microstepping
  • 7 precision stepper motors;
  • Axial fan cooling
  • Standard DMX512 control and address
  • Convenient 3-pin XLR signal connection
  • Modular construction for easy upgrades
  • Built-in self test function
  • Easy to use spot focus function
  • Built-in DMX signal termination
  • Invert pan/tilt function for convenience

TECHNICAL SPECIFICATIONS
Dimnesions:780x280x200 mm
Weight:26.0 kg
Voltage:230V~50Hz
Power Consumption:800VA
Lamp:HMI 575 W/GS (750 hours)
Signal:USITT DMX512
Signal Connection:3-pin XLR
Addressing:Standard DMX512 9-pin binary
Channels:6
Termination:Built-In (Manual)
Recommended Controller:Mastermind 96
  CE Approved
