ESO pro

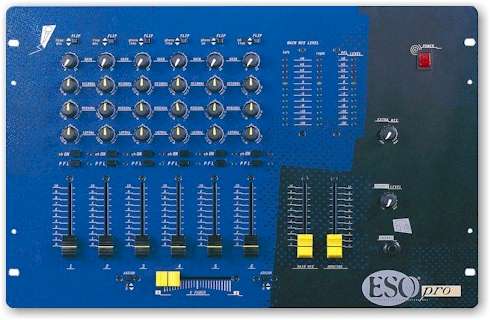

ESOshape ESOfun ESOweb ESO T-mix ESOone ESOhip ESOplug ESOpro ESOverse   ESO A1m ESO A2s ESO A3l		the most complete traditional console in the standard 19" rack size. Bestell-Nr. / Order N°: ESOpro Preis / Price: sFr. 1140.--
		Its wide surface allows  real crazy-fast use without any risk of missing the right knob in a jungle panel




	ESO  pro    -     INPUTS

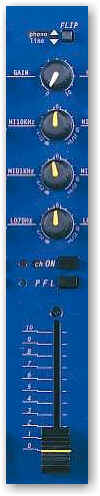

	6 Music Input Channels

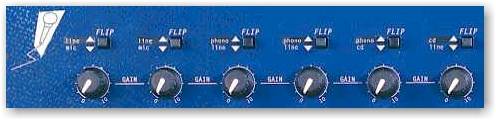

		Simultaneously connect 3 turntables, 7 stereo lines (such as CD players) and 2 microphones CH 1&2 accept stereo RCA connector line inputs and XLR balanced mic input CH 3,4,5 accept phono or line inputs using RCA connectors CH 6 accepts 2 different line inputs using RCA connectors Professional EQ on each stereo input and both Mic inputs EQ is +/- 15db at 70hz(shelf), 1khz (peak/dip) and 10Khz (shelf) All input channels have black level control faders Select between alternate channel inputs from front panel Input channels all have Channel on/off switch Input channels all have Pre Fade Listen to "preview" audio Mic Inputs 1 and 2 use fader level control with balanced XLR input connector



ESO  pro    -     OUTPUTS
Main (House) Output 1 is variable with yellow control fader and balanced XLR connectors plus unbalanced RCA connectors		Monitor (Booth) Output 2 is variable with yellow control fader with balanced ¼ inch connectors and unbalanced RCA connectors
	6 separate stereo outputs Extra Mix output 3 is variable with black rotary control with balanced ¼ inch connectors and unbalanced RCA connectors
Record Output 4 is line level, unbalanced RCA connectors Record Output 5 deletes CH 1&2 (mic channels), and is line level, unbalanced RCA connectors Headphone output 6 is variable via rotary level control for PFL listening



	ESO   pro       -      OTHER   FEATURES

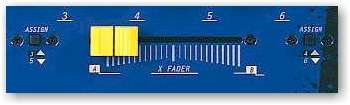

		Yellow Crossfader assignable to Input 1/3 or 2/4
	All Professional Grade faders and rotary pots Adjustable gain on each input channel All rotary pots for non-mix functions Professional Grade Outboard Power Supply
	3 Twin 12 segment LED Main Output Meters to read PFL and Mains Output Meter with Average/Peak Hold Switch
